Robotic Head Module
for Human-Robot Non-Verbal Communication

Home-care robots exhibit distinct characteristics due to their close coexistence with human subjects, making interaction with them an unavoidable aspect of their functionality. For human-robot communication, previous studies in designing robot motions have focused on mimicking human-to-human communication forms, including facial expressions and gestures. These approaches ease the interpretation of the robot's intention by the human users without requiring an extensive learning process. Among the various communication-related modalities, head gestures play an important role, conveying not only simple cues of affirmation or negation, but also more complex and subtle cues related to emotion and attitude. These findings motivate the development of a robotic head module tailored for home environments to support social interaction through intuitive and expressive head gestures.

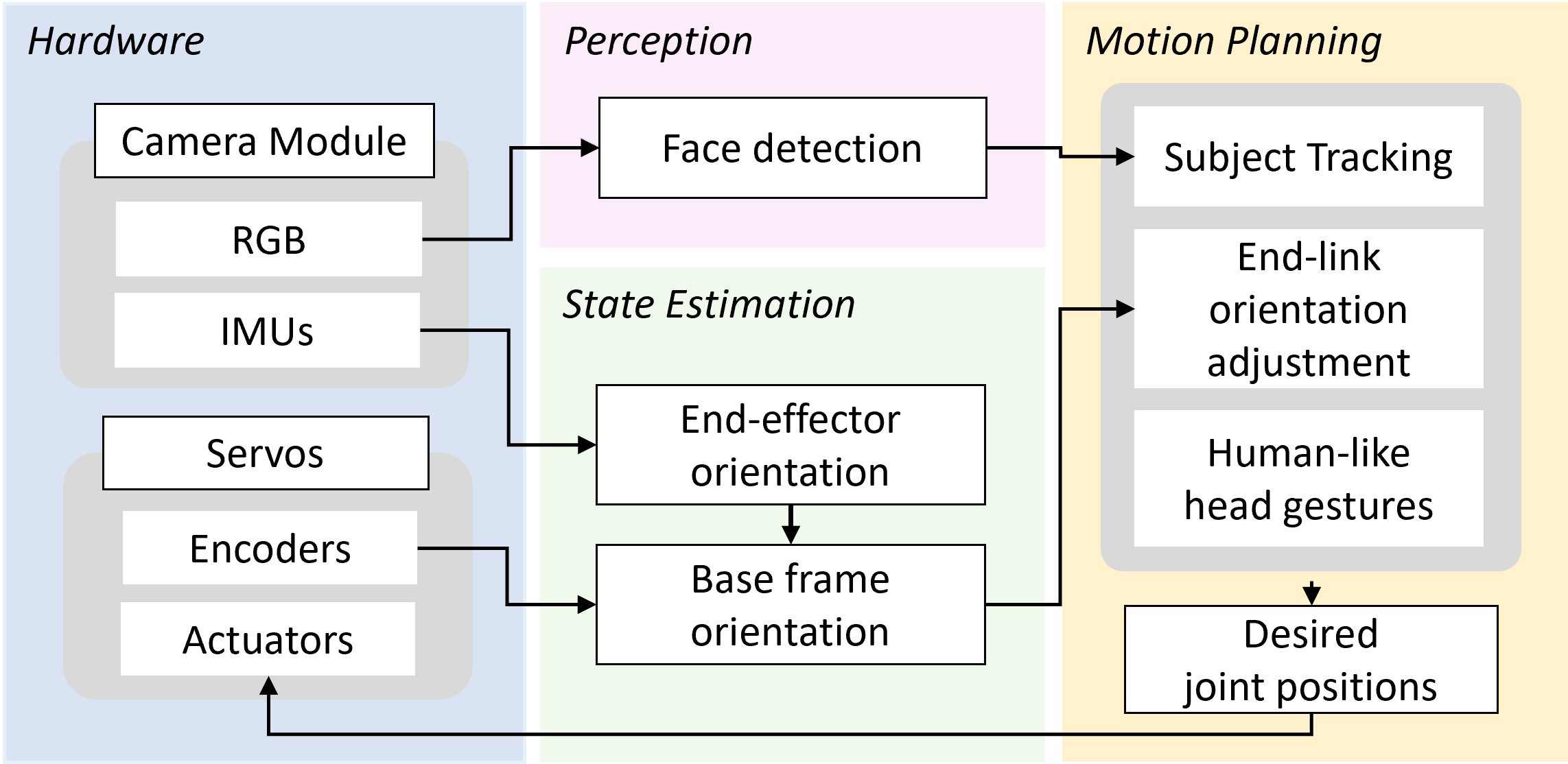

This work presents a 3-DOF robotic head module designed to support non-verbal human-robot communication in various in-home scenarios. For effective deployment, two key features are considered: adaptability to diverse home environments and the ability to deliver clear, non-verbal communicative cues. To ensure adaptability, the module is compatible with a range of docking conditions, including different mounting orientations and dynamic platform states. For interaction, it is capable of tracking a human subject and generating expressive, gesture-based cues. Given these task requirements, an integrated system is developed that enables real-time operation through tightly coupled perception, motion control, and planning modules.
